About this item
- 4K Ultra HD and HDCP 2.2 compliant
- Built-in 4K-1080P downscaler
- Smart EDID Management
- Supports HDR formats including HDR 10, HLG, DOLBY VISION up to 4K60 444
- Firmware upgrading via both micro-USB and Web UISpecifications:- Input/output port: 4 x HDMI IN, 4 x HDMI OUT, 1 x RS232, 1 x IP CONTROL (RJ45), 4 x SPDIF OUT (Digital), 1 x FW (Micro USB), 1 x DC 12V IN
Product Description

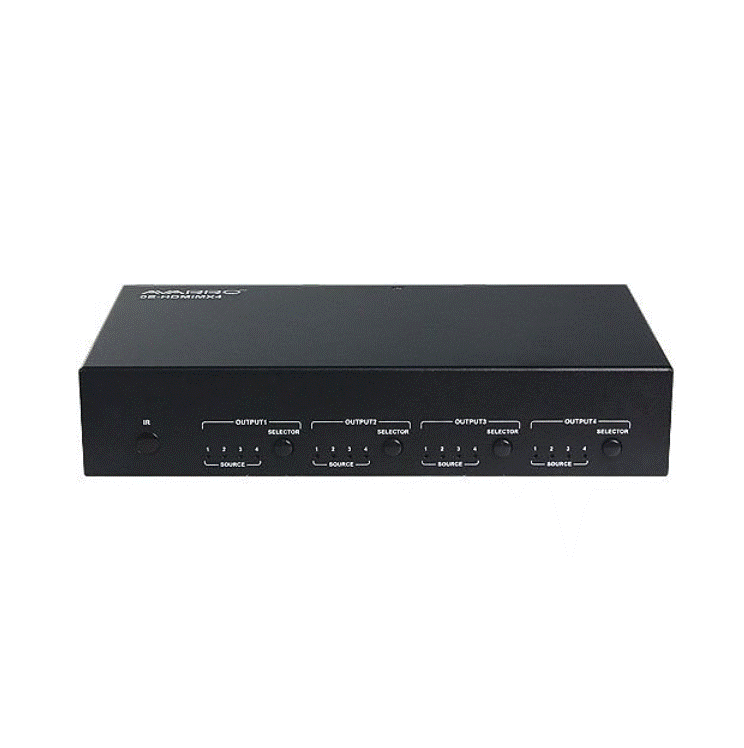

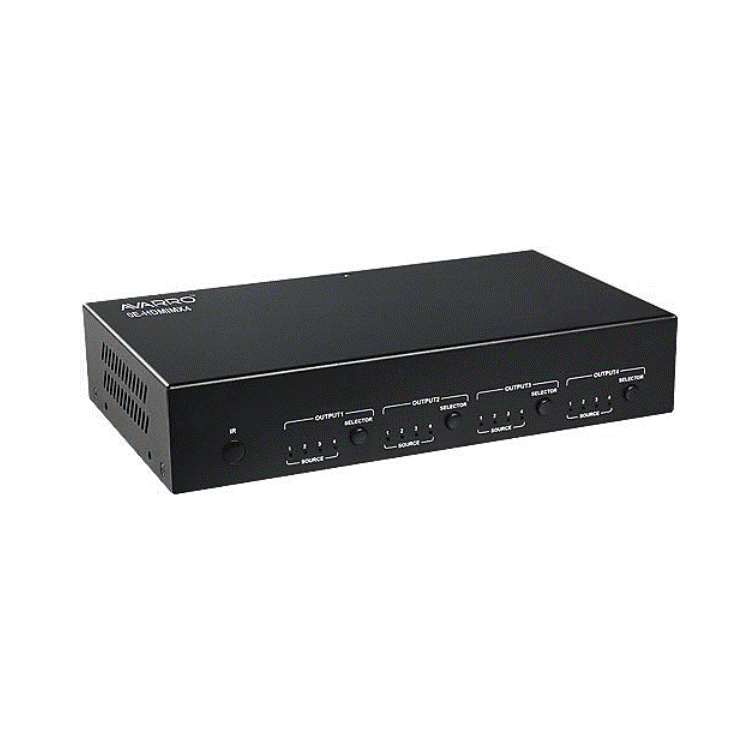

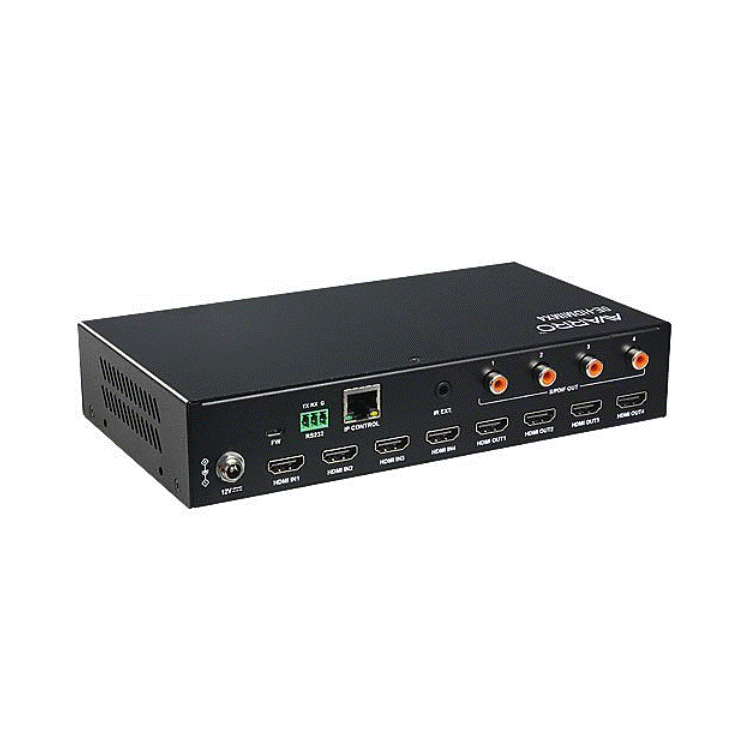

- AVARRO 0E-HDMIMX4 HDMI Switcher with IR Remote Control, 4 Inputs x 2, and 4 Outputs, Smart EDID Management, Firmware Upgrading Via both Micro-USB and Web UI
Key Features:
- 4K Ultra HD and HDCP 2.2 compliant
- Built-in 4K-1080P downscaled
- Smart EDID Management
- Supports HDR formats including HDR 10, HLG, DOLBY VISION up to 4K60 444
- Firmware upgrading via both micro-USB and Web UI
Specifications:
- Input/output port: 4 x HDMI IN, 4 x HDMI OUT, 1 x RS232, 1 x IP CONTROL (RJ45), 2 and 4 x SPDIF OUT (Digital), 1 x FW (Micro USB), 1 x DC 12V IN
- Resolution supported: VESA: 800x600, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1366x768, 1440x900, 1600x900, 1600x1200 , 1680x1050 , 1920x1200 SMPTE: 720x576P, 1280x720P, 1920x1080P, 3840x21608, 4096x2160
- Maximum data rate: 10.2Gbps
- Maximum pixel clock: 340MHz
- Audio format: HDMI in/out, Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS HD Master Audio, and DTS:X S/PDIF OUT: Supports PCM 2.0/5.1, Dolby Digital and DTS up to 5.1 Channel
- Maximum data rate: 18 Gbps
- Maximum pixel clock: 600 MHz
- ESD protection: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge)
- Surge protection: Voltage: ±1 Kv
- Power supply: DC 12V 2A
- Power consumption (max): 10.8W
- Device dimension: 8.46” x 1.65” x 4.73”
- Product weight: 1.19 lbs
Main Features
- 4K Ultra HD and HDCP 2.2 compliant
- Each output supports scaling from 4K to 1080P independently
- Rich control options include RS-232, IR, and push-button controls
- 4K/UHD capability @60Hz with 4:4:4 8bit chroma sampling
- Digital audio de-embedded or ARC from TV on HDMI output 2 and 4 ports
- HDCP 2.2 compliant
- Supports 12-bit Deep Color, 3D, Lip Sync, and loss-less HD audio formats pass-through
- Compact design
- Quick and simple install
- For residential and commercial use with a 2-year warranty
Name:
- AVARRO 0E-HDMIMX2 HDMI Switcher with IR Remote Control, 4 Inputs x 2 and 4 Outputs.
Category:
- NAVARRO, Residential AV, Residential Video Signal Distribution, HDMI Matrix Switches.
UPC Code:
- 840049305779
Country of Origin: China. Country of origin is subject to change.
Key Features

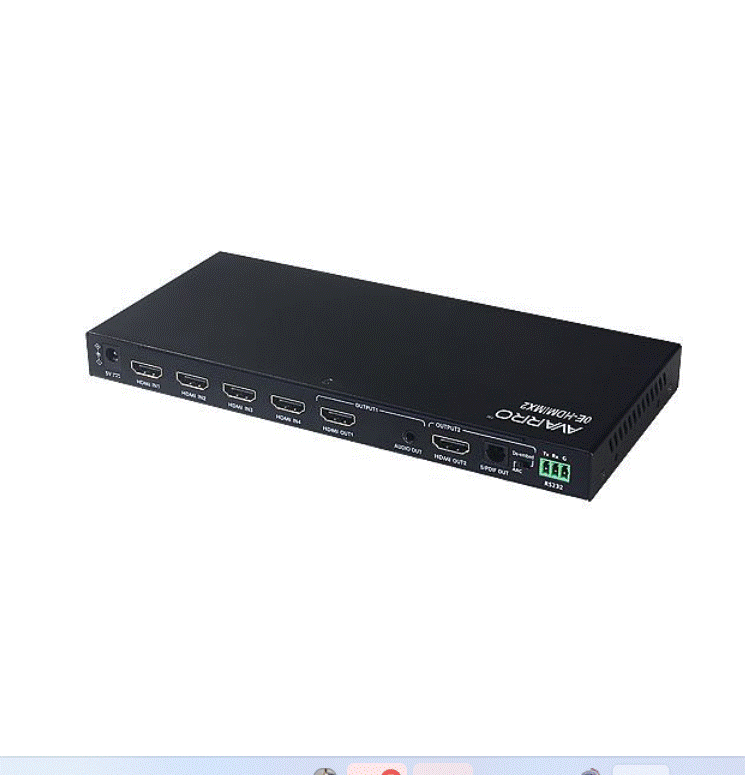

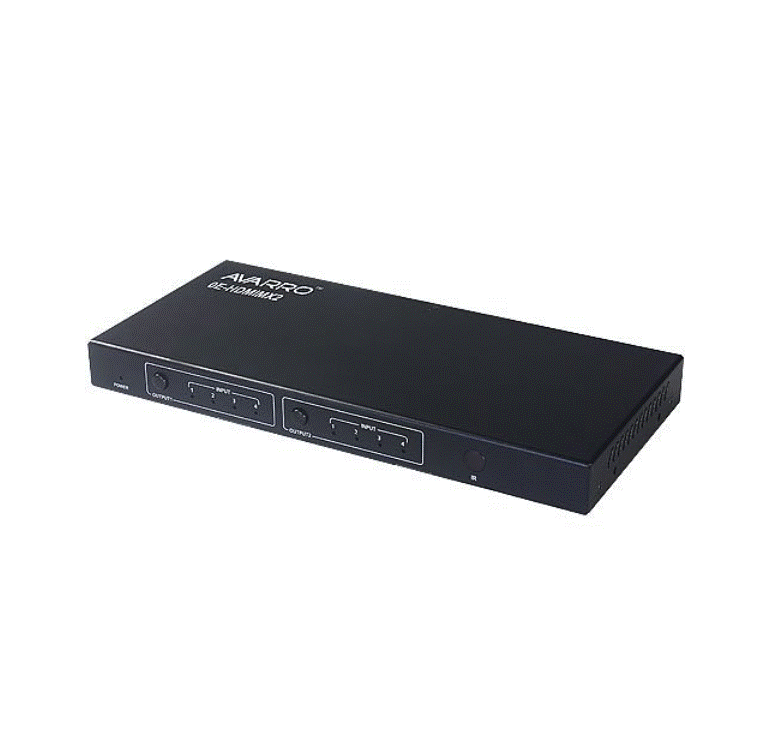

- The AVARRO 4K HDMI Switcher is a four-in and two-out matrix switcher that routes 4 Ultra HD sources to two 4K Ultra HD displays.
- Features an RS232 IR remote control and supports High Dynamic Range (HDR) for the ultimate viewing experience.
- If you are looking for a higher-performance switcher, the AVARRO 0E-HDMIMX4 is perfect for your needs.
Compare
- 4K Ultra HD and HDCP 2.2 compliant
- Each output supports scaling from 4K to 1080P independently
- Rich control options include RS-232, IR, and push-button controls
| Connector Type | HDMI |
| Brand | AVARRO |
| Cable Type | USB, HDMI |
| Number of Ports | 4 |
| Product Dimensions | 8.46 x 4.73 x 1.65 inches |
|---|---|
| Item Weight | 1.19 pounds |
| ASIN | B0BYRT1P4V |
| UNSPSC Code | 52161525 (Remote control) Report an incorrect code |
| Item model number | 0E-HDMIMX4 |
| Date First Available | March 17, 2023 |
| Manufacturer | AVARRO |
